📍 Geo-Synchronized Video / Map Marker

The Geo-synchronized marker feature allows you to highlight and track the same geographic point simultaneously on both the video and the map.
This greatly enhances situational awareness by keeping visual and spatial information aligned.

When enabled:

  • The system assigns a Master view automatically, depending on whether you're interacting with the video or the map window.
  • The Master marker remains fixed in its respective view.
  • The Slave marker is dynamically adjusted in real time using the geolocation metadata, ensuring both views stay synchronized.

This functionality is particularly helpful when analyzing missions, identifying objects of interest, or verifying geo-positioning accuracy.

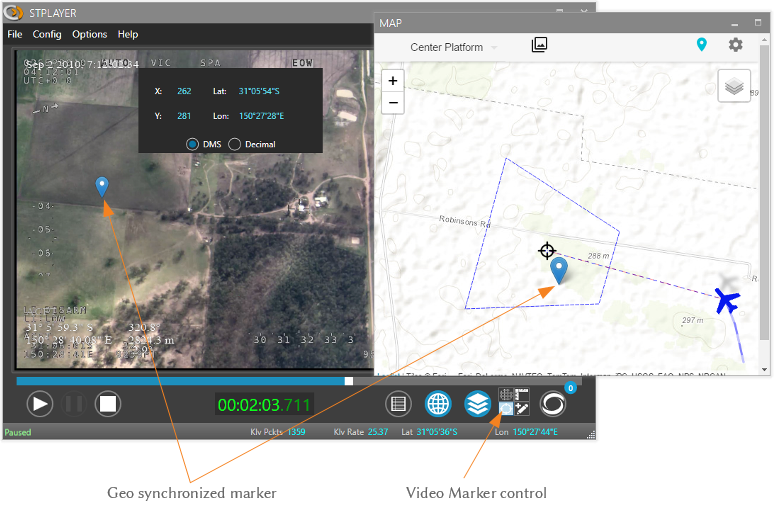

Video / Map Marker
