Player Automation

🧾 Passing Command-Line Arguments

StPlayer allows an automation script to pass command-line arguments to the application.

Command	Description	Example
-c, --config	Initial configuration	-c C:\\Movie\\test.cfg
-i, --input	File or stream url	-i C:\\Movie\\test.ts
-k, --klvWindow	Open Klv window	-k or --klvWindow
-m, --mapWindow	Open Map window	-m or --mapWindow
-p, --position	Start position, seconds (files only)	-p 60 or --position 60
-x, --xAppWindow	Initial app window X offset	-x 100 or --xAppWindow 100
-y, --yAppWindow	Initial app window Y offset	-y 100 or --yAppWindow 100
-w, --widthAppWin	Initial app window width	-w 640 or --widthAppWin 640
-h, --heightAppWin	Initial app window height	-h 480 or --heightAppWin 480

Note: When playback starts, Width and Height are automatically adjusted to the video aspect ratio.

📄 Example

StPlayer.exe -i c:\\Movie\\test.ts -p 60 -k -m

You can also simply pass a .ts file path or a stream URL, if the above options are not needed:

📁 File:

StPlayer.exe c:\\Movie\\test.ts

🌐 Stream:

StPlayer.exe udp://227.1.1.1:30120

With Network Interface:

StPlayer.exe udp://227.1.1.1:30120/nic=192.168.1.10

---

⚙️ Workflow Automation

StPlayer comes with a workflow execution engine that allows you to automate some of the basic tasks. You can use this API to open, start/pause/stop playback, open application's windows, etc. In addition you can manage playback configurations, fully automating your workflow. The APIs provide the ability to tightly integrate the StPlayer into external processes and eliminate manual steps.

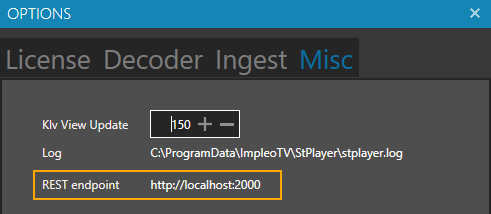

REST endpoint is automatically selected based on the available port and can be found at Options->Misc

---

ℹ️ Info Methods

Method	Type	Description
status	GET	Get current status
session	GET	Get current configuration

---

▶️ Action Methods – Playback

Method	Type	Description
open	POST	Open file / stream
load	POST	Load configuration
start	POST	Start / resume command
pause	POST	Pause command
seek	POST	Seek command
stop	POST	Stop command
close	POST	Close player

---

🛰️ Action Methods – KlvMonitor

Method	Type	Description
open	POST	Open klvmonitor
close	POST	Close klvmonitor

---

🗺️ Metadata Methods – GeoJson

Method	Type	Description
lastPacketGeoJson	GET	Get Last Klv packet as GeoJson

---

🗺️ Action Methods – Map

Method	Type	Description
open	POST	Open map
close	POST	Close map

---

📸 Action Methods – Snapshot

Method	Type	Description
snapshot	POST	Take snapshot

Snapshot picture/metadata format is selected based on current configuration.

---

🎛️ Action Methods – Hide/Show Buttons

Method	Type	Description
hidebuttons	POST	Hide buttons
showbuttons	POST	Show buttons

UI Control Configuration:

<setting name="HiddenButtons" serializeAs="Xml">
  <value>
    <ArrayOfString xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
      <string>StepBackward</string>
      <string>Play</string>
      <string>StepForward</string>
      <string>Pause</string>
      <string>Live</string>
      <string>Stop</string>
      <string>Rate</string>
      <string>GotoTime</string>
      <string>GoToTimePicker</string>
      <string>Bookmarks</string>
      <string>ScreenShot</string>
      <string>Query</string>
      <string>CutClip</string>
      <string>FullScreen</string>
      <string>Record</string>
      <string>KlvMonitor</string>
      <string>Map</string>
      <string>Overlay</string>
      <string>OverlayToolbox</string>
      <string>Annotations</string>
    </ArrayOfString>
  </value>
</setting>
<setting name="HideButtons" serializeAs="String">
  <value>False</value>
</setting>

---

Examples

📡 Get status

Command (GET)

http://localhost:2000/status

Response

{
 "state": "Running",
 "position": 12.892,
 "duration": 51.92,
 "klvInfo": {
   "totalPackets": 362,
   "pid": 482,
   "processedRate": 20.47,
   "rate": -1.0
 }
}

---

🔍 Get session

Command (GET)

http://localhost:2000/session

Response

{
  "Type": 0,
  "Source": {
    "Loop": false,
    "Url": "c:/movie/klv/2t.ts",
    "DetectedKlvPids": [ 482 ],
    "StreamInfo": {
      "streams": [
        {
          "index": 0,
          "codec_name": "h264",
          "codec_long_name": "H.264 / AVC / MPEG-4 AVC / MPEG-4 part 10",
          "profile": "Main",
          "codec_type": "video",
          "codec_time_base": "1/50",
          "codec_tag_string": "[27][0][0][0]",
          "codec_tag": "0x001b",
          "width": 1920,
          "height": 1088,
          "coded_width": 1920,
          "coded_height": 1088,
          "has_b_frames": 0,
          "sample_aspect_ratio": "0:1",
          "display_aspect_ratio": "0:1",
          "pix_fmt": "yuv420p",
          "level": 41,
          "chroma_location": "left",
          "field_order": "progressive",
          "refs": 1,
          "is_avc": "false",
          "nal_length_size": "0",
          "id": "0x1e1",
          "r_frame_rate": "25/1",
          "avg_frame_rate": "25/1",
          "time_base": "1/90000",
          "start_pts": 3258000,
          "start_time": "36.200000",
          "duration_ts": 4672800,
          "duration": "51.920000",
          "bits_per_raw_sample": "8"
        },
        {
          "index": 1,
          "codec_name": "klv",
          "codec_long_name": "SMPTE 336M Key-Length-Value (KLV) metadata",
          "codec_type": "data",
          "codec_tag_string": "KLVA",
          "codec_tag": "0x41564c4b",
          "id": "0x1e2",
          "r_frame_rate": "0/0",
          "avg_frame_rate": "0/0",
          "time_base": "1/90000",
          "start_pts": 3258000,
          "start_time": "36.200000",
          "duration_ts": 4672800,
          "duration": "51.920000",
          "klvType": "ASYNC_KLV",
          "ingestedPackets": 324,
          "startTime": "2010-09-02T07:06:31.757+03:00",
          "endTime": "2010-09-02T07:07:23.433+03:00",
          "klvTimeDuration": "51.676"
        },
        {
          "index": 2,
          "codec_tag_string": "[161][0][0][0]",
          "codec_tag": "0x00a1",
          "id": "0x1acd",
          "r_frame_rate": "0/0",
          "avg_frame_rate": "0/0",
          "time_base": "1/90000",
          "start_pts": 3258000,
          "start_time": "36.200000",
          "duration_ts": 4672800,
          "duration": "51.920000"
        }
      ],
      "format": {
        "filename": "c:/movie/klv/2t.ts",
        "nb_streams": 3,
        "nb_programs": 1,
        "format_name": "mpegts",
        "format_long_name": "MPEG-TS (MPEG-2 Transport Stream)",
        "start_time": "36.200000",
        "duration": "51.920000",
        "size": "33756904",
        "bit_rate": "5201371",
        "ingestPacketSampling": 120,
        "ingestErrors": 0
      }
    }
  },
  "Processing": {
    "ActiveKlvPid": 482,
    "ValidateKlvChecksum": true,
    "MaxDelay": 300,
    "KlvSampling": 30,
    "FilterShortPackets": 3,
    "SyncOffset": 0,
    "RenderAudio": true,
    "NumberOfScaleCores": 3
  },
  "Platform": {
    "PlatformType": "Helicopter",
    "PlatformColor": "Blue",
    "ShowVmti": true,
    "ShowTrail": true,
    "TrailDuration": 10.0,
    "LineWidth": 2
  },
  "MissionId": "5ab35073fa19b946dc85b180",
  "Ingested": true
}

---

🌍 Get Last Packet as GeoJson

Command (GET)

http://localhost:2000/lastPacketGeoJson

Response

{
  "type": "FeatureCollection",
  "features": [
    {
      "type": "Feature",
      "geometry": {
        "type": "Point",
        "coordinates": [150.4909894385, -31.0454143356]
      },
      "properties": {
        "description": " Mission Id: test",
        "title": " Platform: 15HD BN-2T Mission Id: test",
        "name": "Sensor",
        "marker-symbol": "camera"
      }
    },
    {
      "type": "Feature",
      "geometry": {
        "type": "LineString",
        "coordinates": [
          [150.4909894385, -31.0454143356],
          [150.4476808153, -31.0759667079]
        ]
      },
      "properties": {
        "name": "CameraToTargetLine",
        "stroke-width": 1,
        "stroke-opacity": 1,
        "stroke": "#ff0000"
      }
    },
    {
      "type": "Feature",
      "geometry": {
        "type": "Polygon",
        "coordinates": [[[150.4386832153, -31.1221084079], [150.3933495153, -31.0744629079], [150.4570836153, -31.0555132079], [150.4728288153, -31.0720550079], [150.4386832153, -31.1221084079]]]
      },
      "properties": {
        "name": "Footprint",
        "stroke": "#0000ff",
        "stroke-width": 2,
        "fill-opacity": 0
      }
    },
    {
      "type": "Feature",
      "geometry": {
        "type": "LineString",
        "coordinates": [
          [150.4909894385, -31.0454143356],
          [150.4476808153, -31.0759667079]
        ]
      },
      "properties": {
        "name": "CameraToFrameCenter",
        "stroke-width": 1,
        "stroke-opacity": 1,
        "stroke": "#0000ff"
      }
    }
  ]
}

Rendered GeoJSON Output:

---

Open

Command (POST) - TS File Playback

 http://localhost:2000/open/url?url=c:\movie\mymovie.ts

Command (POST) - Local HLS Playback

 http://localhost:2000/open/url?url=c:\movie\stHls.m3u8

Command (POST) - HTTP HLS Playback

 http://localhost:2000/open/url?url=http://localhost:8080/stHls.m3u8

Command (POST) - Stream Playback

 http://localhost:2000/open/url?url=udp://227.0.0.1:30120

Response

 Status (200) Ok

Load configuration

Command (POST) - Load config file

 http://localhost:2000/load/cfgFilel?cfgFile=c:/movie/test.cfg

Response

 Status (200) Ok

Play

Command (POST) - Start / Resume playback

 http://localhost:2000/start

Response

 Status (200) Ok

Pause

Command (POST) - Pause playback

 http://localhost:2000/pause

Response

 Status (200) Ok

Seek

Command (POST) - Seek to (time) position

http://localhost:2000/seek/position?position=10

Response

 Status (200) Ok

Stop

Command (POST) - Stop playback

 http://localhost:2000/stop

Response

 Status (200) Ok

Close

Command (POST) - Close player

 http://localhost:2000/close

Response

 Status (200) Ok

Open Map

Command (POST) - Open Map window

 http://localhost:2000/map/command?command=open

Load MilSymbols to the Map

Command (POST) - Load MilSymbols

 http://localhost:2000/map/milsymbols

Body application/json

 {
    "name":"Layer",
    "type":"FeatureCollection",
    "crs": {"type": "name","properties": {"name": "EPSG:4326"}},
    "features":[
    {"type":"Feature","geometry":{"type":"Point","coordinates":[34.51337814331055, 31.576488011716833]},"properties":{"SIDC":"SHGPU------E***","name":"1.A","fullname":"1.H"}},
    {"type":"Feature","geometry":{"type":"Point","coordinates":[34.50325012207031, 31.56654278611756]},"properties":{"SIDC":"SHGPU------E***","name":"1.B","fullname":"1.B"}},
    {"type":"Feature","geometry":{"type":"Point","coordinates":[34.5355224609375, 31.557181604816563]},"properties":{"SIDC":"SHGPU------E***","name":"1.C","fullname":"1.C"}},
    {"type":"Feature","geometry":{"type":"Point","coordinates":[34.54822540283203, 31.546356567845027]},"properties":{"SIDC":"SHGPU------E***","name":"1.D","fullname":"1.D"}}
   ]
}
