KLV Composer And VMTI

KLV Inspector includes editing workflows in addition to analysis. You can build packets from scratch, modify existing packets, and work directly with VMTI payloads.

KLV Composer​

Use KLV Composer to create a packet from individual items or to edit an existing packet.

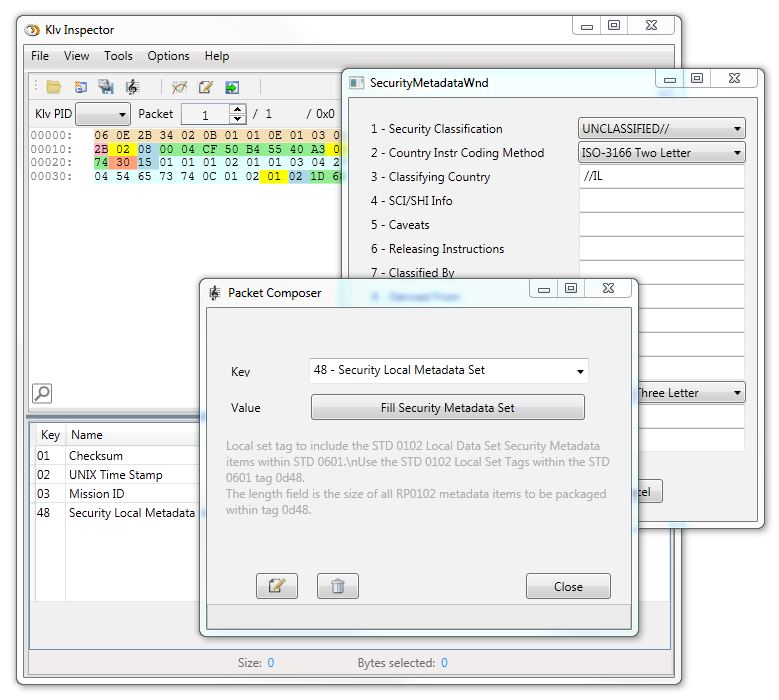

KLV Composer

Figure: KLV Composer for packet construction and editing.

The editor supports nested protocols, including Security Local Set content.

VMTI Editing​

The built-in VMTI editor supports MISB 0903.3 packet creation and editing, including both Local Data Set content and multiple Target Packs.

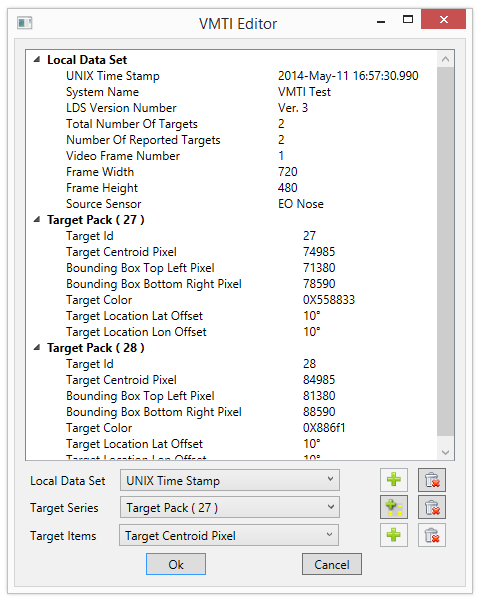

VMTI editor

Figure: VMTI editor.

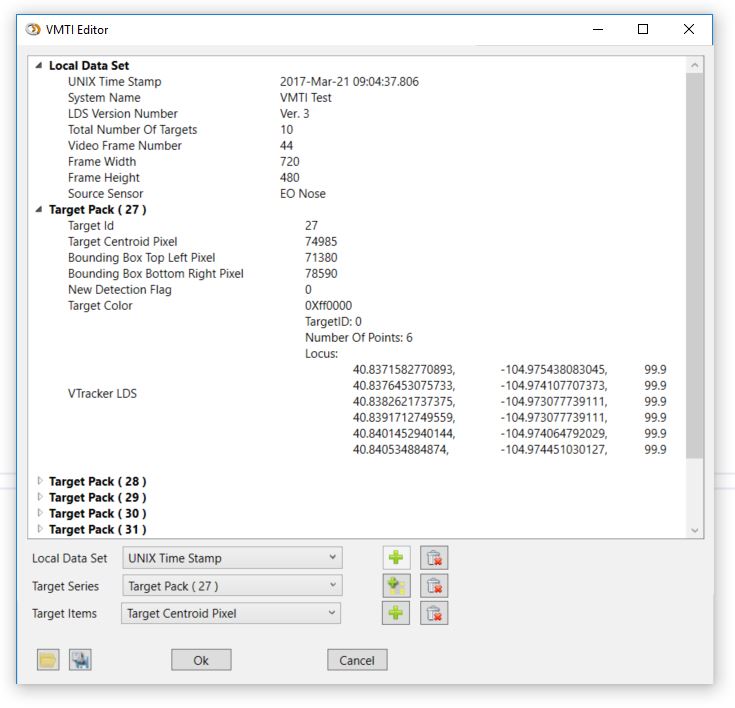

Encoded VMTI data

Figure: Encoded VMTI data with tracker content.

You can also load and save raw VMTI packets without a MISB 0601 wrapper.

Packet Cloning​

KLV Inspector can clone packets by generating multiple copies with a configured time interval between them. When cloning completes, the generated file is ingested automatically so you can inspect the result immediately.
