Bitrate Analysis

KLV Inspector can plot bitrate for STANAG transport streams and help identify timing or continuity problems that affect playback and analysis.

Bitrate plotter

Figure: Bitrate plot for a transport-stream file.

Open the bitrate view from the plot command or by right-clicking an individual file.

PCR Discontinuity Monitoring​

Incorrect PCR continuity can distort bitrate calculations and indicate transport issues.

PCR discontinuity monitoring

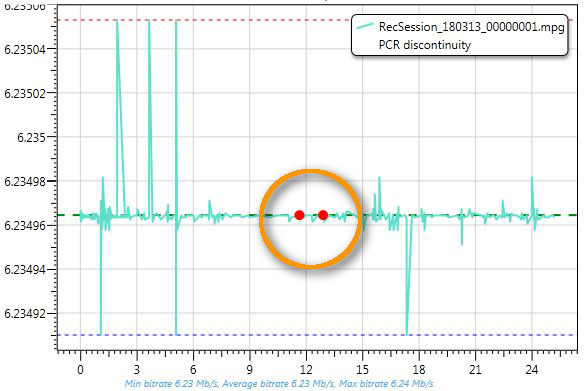

Figure: PCR discontinuity monitoring.

If the difference between two consecutive PCR values becomes negative, KLV Inspector marks the event on the graph so it is easy to locate and investigate.
