Map Window

If the current KLV packet contains geographic information, KLV Inspector can visualize the platform position, frame center, and sensor footprint on a map.

Map window control

Figure: Button used to open the Map Window.

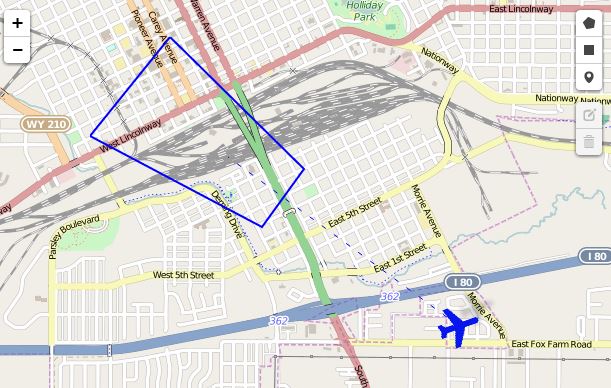

Map window

Figure: Map Window with geo-referenced metadata.

note

Online map usage requires internet access.

Offline Map Tiles​

KLV Inspector can also use locally stored map tiles.

One practical way to prepare those tiles is with Mobile Atlas Creator, exporting in OSMdroid ZIP format.

Mobile Atlas Creator

Figure: Preparing offline map tiles with Mobile Atlas Creator.

The expected directory structure is:

{atlas_name}/{z}/{x}/{y}.png

After extracting the atlas, either copy it into the KLV Inspector map tile directory or update the application configuration to point to the local tile folder.

Offline map configuration

Figure: Offline map folder configuration.
