Using Klv Monitor

The StCore SDK test application includes a built-in Klv Monitor, which can be useful during the integration and debugging phases.

Klv Monitor: JSON View

You can inspect KLV packets in JSON format by opening the dedicated JSON View window.

There are two display modes:

  • Compact – Shows only tag identifiers with native-format values.
  • Detailed – Displays tag identifiers and their names with human-readable values.

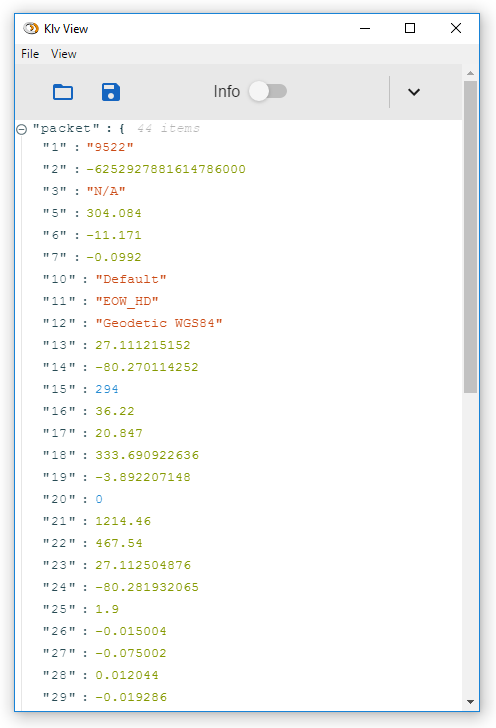

JSON View (Compact)

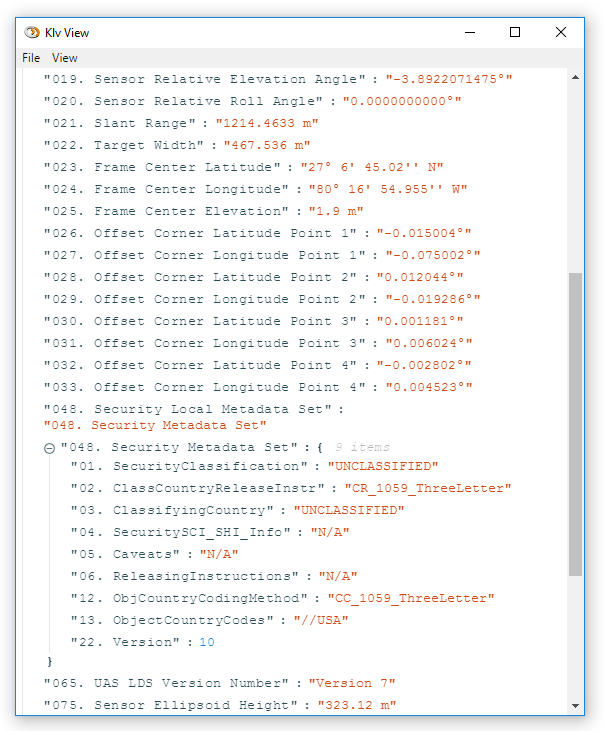

JSON View (Detailed)

You can also save a packet to disk or load a previously saved one into the JSON View window for inspection.
