Console Demo Application

The STANAG Player SDK includes a console demo application that demonstrates basic functionality, such as playing STANAG files or streams.

---

Building the Demo Application

By default, the demo app is located at:

C:\Program Files\ImpleoTV\StanagPlayerSdkNet\Samples\KlvPlayerTestApp

To build it:

1. Open the solution or project file KlvPlayerTestAppPr.
2. Build the project as a 64-bit application (Debug or Release).

To run the demo app, provide a STANAG source using the -i argument.
For example:

-i c:\movies\mymovie.ts

Command-Line Arguments

Short	Command	Description
-i	--input	Input URL. Can be a file path or a UDP/RTSP stream (e.g., udp://227.1.1.1:30120).
-o	--output	Directory to save captured frames.
-r	--recording	DVR recording URL for playback of previously recorded streams.
-v	--video	Show video during processing. Default: true.
	--frameCaptureFormat	Frame capture format: 0 = None, 1 = JPEG, 2 = BMP.
-d	--maxDelay	Maximum allowed delay (in milliseconds) between video and KLV metadata.
-c	--caching	Network caching buffer size. Increase for unstable networks; decrease for lower latency.
	--minKlvPacketCount	Minimum number of KLV tags required in a packet. Default: 3.
	--klvPid	KLV PID to use for metadata decoding.
	--rtspSourceInterleaved	Use TCP (interleaved) mode for RTSP sources. Default: false.
	--licenseFile	Path to the license file. If not specified, the default license file is searched in the application directory.
	--licenseKey	License key string used for activation.
-?	--help	Show help and usage instructions.

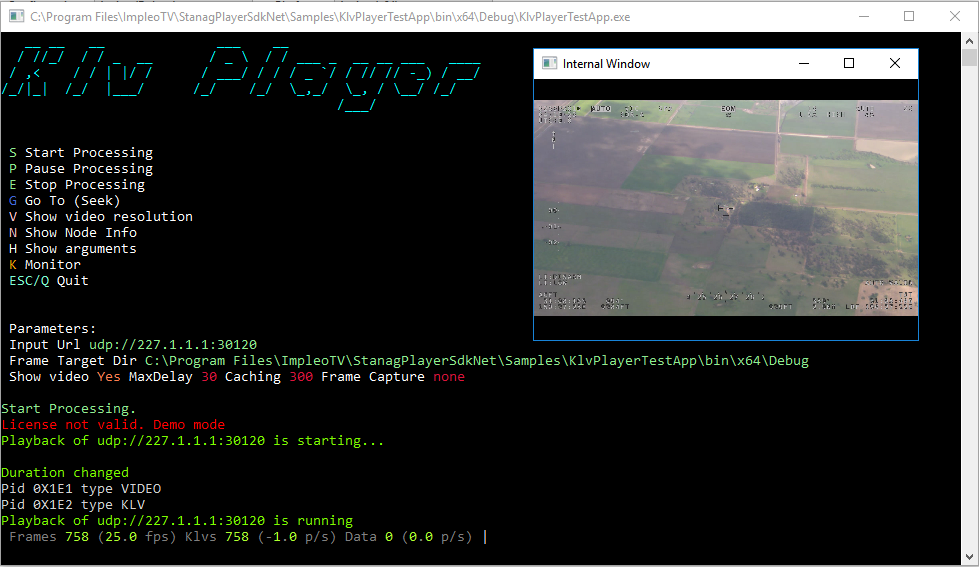

Features and Controls

You can pause, stop, restart, or seek playback.

The application displays real-time statistics about the stream.

To inspect KLV packets in JSON format, press K to open the KlvMonitor window.
See Klv Monitor for more details.
