Validating STANAG stream

We'll be using StPlayer application to validate the created stream.

Let's load the recorded file and see what is inside the multiplex.

We can see that the resulted output is a TS file with 2 elementary streams. TS Stream

Video / metadata packet distribution in the file. Stream Pie

There is a video elementary stream Video stream

and Klv data stream Klv data Stream

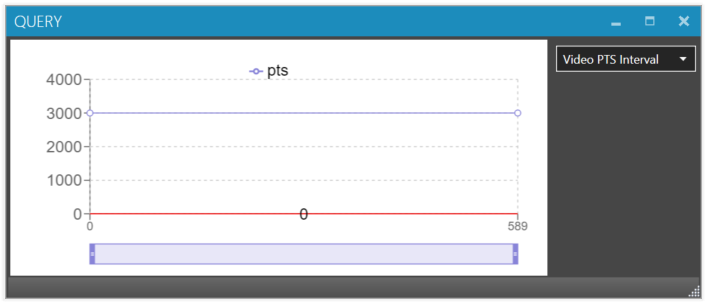

Intervals between the Video timestamps (Pts / Dts) show a perfect line. Pts intervals

And as we've inserted a Klv packet with every video frame, we see the exact correlation in the stream - our video and klvs are in a perfect frame-accurate sync. Video / Klv sync
