Sample Code - Klv Metadata extraction

using System;
using System.Collections.Generic;
using System.Linq;
using StTelemetryExtractor;
using StTelemetryExt;
using System.Threading;


namespace TelemetryExtractorTestApp
{
    class Program
    {

        static StanagTelemetryExtractor extractor;
        static object ConsoleLock = new object();


        static void Main(string[] args)
        {
            Console.WriteLine(@"Usage: TelemetryExtractorTestApp.exe  C:\Movie\KLV\ScottKlv.ts");

            if (args.Count() == 0)
            {
                Console.WriteLine("Please provide file path");

                Console.ReadKey(true);
                return;
            }

            // Create extractor instance
            extractor = new StanagTelemetryExtractor();
            if (extractor.Activate("TelemetryExtractor", @"C:\MyLicenseFile.lic", "505536B2-1ABF5491-3F28B6D0-AF46D13B") == false)
                ReportError("License not valid. Demo mode activated. Only 10 first packets will be processed");
            else
                Console.WriteLine("License Ok");

            // Setup events
            extractor.MetadataPidDetectionCompleteEvent += new MetadataPidDetectionCompleteHandler(extractor_MetadataPidDetectionCompleteEvent);
            extractor.PacketReadyEvent += new StTelemetryExtractor.PacketReadyHandler(extractor_ExtractorPacketReadyEvent);
            extractor.SegmentProcessingEvent += new SegmentProcessingHandler(extractor_SegmentProcessingEvent);
            extractor.ExtractorErrorEvent += new StTelemetryExtractor.ExtractorErrorHandler(extractor_ExtractorErrorEvent);
            extractor.ExtractorMessageEvent += new StTelemetryExtractor.ExtractorMessageHandler(extractor_ExtractorMessageEvent);
            extractor.ExtractorCompleteEvent += new StTelemetryExtractor.ExtractorCompleteHandler(extractor_ExtractorCompleteEvent);

            // Configure
            extractor.ValidateChecksum = true;

            // Add some files
            foreach( var f in args)
            {
                Console.WriteLine("Add File {0}", f);
                extractor.AddFile( f, null ); // We provide file path only. Klv Pid will be detected automatically.
            }

            Console.WriteLine(Environment.NewLine);

            Console.WriteLine("\nS - Start Processing.");
            Console.WriteLine("\nE - Stop Processing.");
            Console.WriteLine("\nESC/Q - Quit.");
            Console.WriteLine(Environment.NewLine);

            ConsoleKeyInfo cki = new ConsoleKeyInfo();

            do
            {
                cki = Console.ReadKey(true);
                switch (cki.Key)
                {
                    case ConsoleKey.S:

                        Console.WriteLine("\nStart Processing.");

                        // Start KlvProcessing
                        extractor.Start();
                        break;

                    case ConsoleKey.E:
                        Console.WriteLine("\nStop KlvProcessing");

                        // Stop KlvProcessing
                        extractor.Stop();
                        break;
                }

                Thread.Sleep(200);

            } while (cki.Key != ConsoleKey.Q && cki.Key != ConsoleKey.Escape);

            // Stop Extractor (if it is running) and exit.
            extractor.Stop();
        }

        // Raised when extractor completes Klv metadata PID detection
        static void extractor_MetadataPidDetectionCompleteEvent(MetadataPidDetectionCompleteArgs e)
        {
            lock (ConsoleLock)
            {
                Console.ForegroundColor = ConsoleColor.Magenta;
                Console.WriteLine("Detection complete. {0} Klv Pid(s) found:", e.pids.Count());
                Console.ResetColor();
                foreach (var pid in e.pids)
                {
                    Console.WriteLine(string.Format("{0} (0x{1})", pid.ToString(), pid.ToString("X3")));
                }
            }
        }

        // Raised when a new metadata packet is ready
        static void extractor_ExtractorPacketReadyEvent(List<EG601Item> pckt, Int64 offset)
        {
            lock (ConsoleLock)
            {
                Console.ForegroundColor = ConsoleColor.DarkGray;
                Console.Write("Packet {0} klvs\t received\t ", pckt.Count);
                Console.ResetColor();
                Console.Write("Time {0}. Offset {1}\n", pckt[0].ConvertedValueStr, offset);
            }
        }

        // Raised on Segment processing start or completion
        static void extractor_SegmentProcessingEvent(SegmentProcessingArgs e)
        {
            lock (ConsoleLock)
            {
                Console.ForegroundColor = ConsoleColor.Yellow;
                if(e.State == SegmentProcessingState.STARTED)
                    Console.Write("Segment {0} processing started.", e.Path);
                else
                    Console.Write("Segment {0} processing complete. {1} klv packets processed.", e.Path, e.PacketCount);
                Console.ResetColor();
                Console.WriteLine(Environment.NewLine);
            }
        }

        // Raised when all entires in the list have been processed
        static void extractor_ExtractorCompleteEvent()
        {
            lock (ConsoleLock)
            {
                Console.WriteLine("Extraction complete. {0} packets processed", extractor.TotalKlvPacketsProcessed);
            }
        }

        // Raised on Extractor notification message
        static void extractor_ExtractorMessageEvent(StTelemetryExtractor.ExtractorMessageArgs e)
        {
            lock (ConsoleLock)
            {
                Console.ForegroundColor = ConsoleColor.Green;
                Console.WriteLine(e.Message);
                Console.ResetColor();
            }
        }

        // Raised on Extractor error
        static void extractor_ExtractorErrorEvent(StTelemetryExtractor.ExtractorErrorArgs e)
        {
            ReportError(e.Message);
        }


        static void ReportError(string format, params object[] args)
        {
            lock (ConsoleLock)
            {
                Console.ForegroundColor = ConsoleColor.Red;
                Console.Write(format, args);
                Console.WriteLine(Environment.NewLine);
                Console.ResetColor();
            }
        }
    }
}

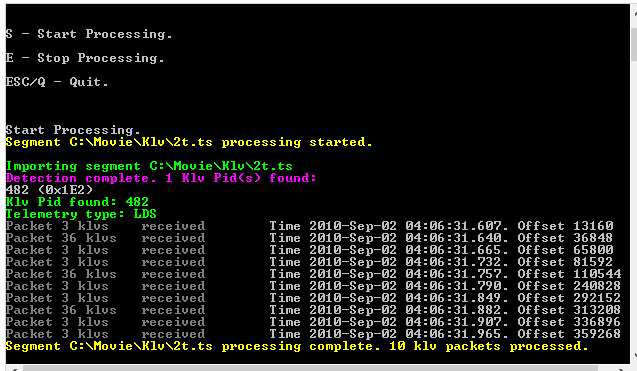

Figure 1. Console Test Application.
