KLV Injector  Version 3.10.0
Using KlvInjector to insert a RAW KLV telemetry packets sent over Ethernet into TS stream (sent over UDP).

This is an example of KlvInjector usage for a RAW Klv Telemetry insertion. It demonstrates how to receive an MPEG TS stream from the LAN and insert RAW Telemetry packets coming from another UDP port. The KLV information is added as a Klv Data PID to the transport multiplex and a result is saved into the file as a compliant STANAG 4609 file.

  • Select a Session Config and set a network source related parameters:

Network interface, IP and port for video stream reception.

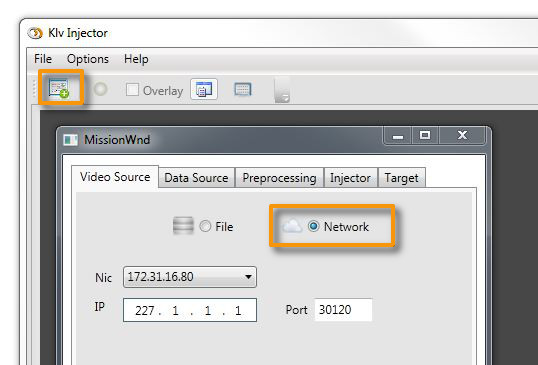

Figure 1. Network Video Source parameters configuration.


  • Configure Data source related parameters:

Network interface, IP and port for RAW KLV metadata reception.

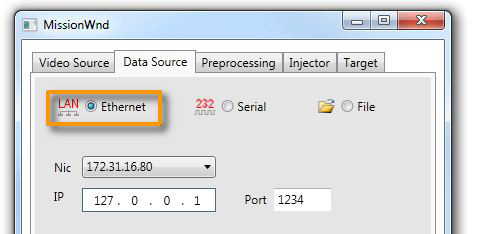

Figure 2.Network Data Source parameters configuration.


  • Configure Preprocessing parameters:

You can add a template file (.bin or .json) to add/merge specific entries.

Figure 3. Preprocessing parameters configuration.


For more info on metadata preprocessing see Metadata Preprocessing.

  • Configure KLV insertion parameters:
Figure 4. KLV insertion parameters configuration.


For more info on timing setup see Timing Configuration.

  • Configure File Target parameters: You can select segmented (by size/time) recording if needed.
    Figure 5. File Target parameters configuration.

  • Close Session Config window and start recording session.
    Figure 6. Session control.

    You can preview the metadata during processing. For more info on the live metadata preview, please see Live Metadata Preview..
