UAVideo Player is capable of presenting a real time platform, footprint and target information on a variety of 2D maps, both online and offline.

Opening Map

Click on the Map icon, drag the map window and dock it somewhere.

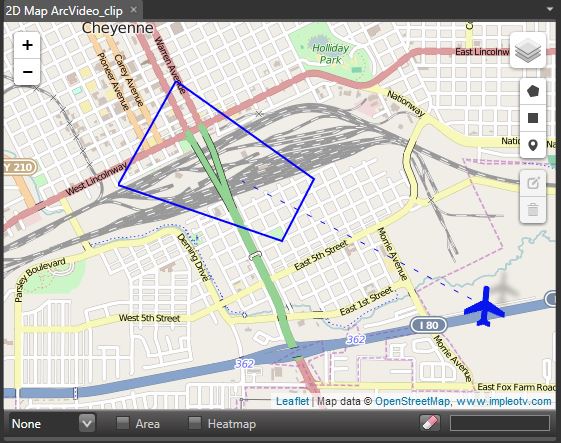

Using 2D Map

A real time platform, footprint and target information will be presented on a map in case the corresponding metadata is present in the file/stream.

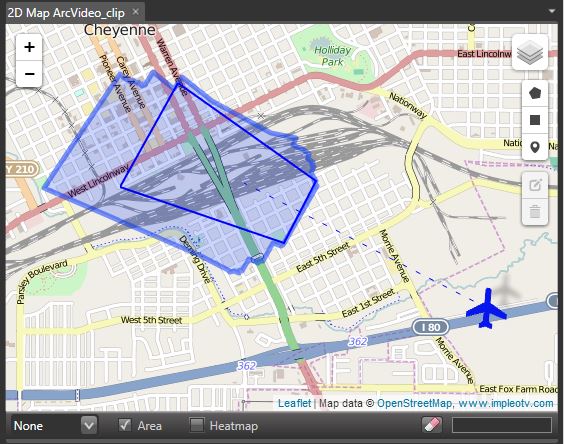

Area overlay

It is possible to calculate and present an entire area that has been filmed by checking the "Area" box.

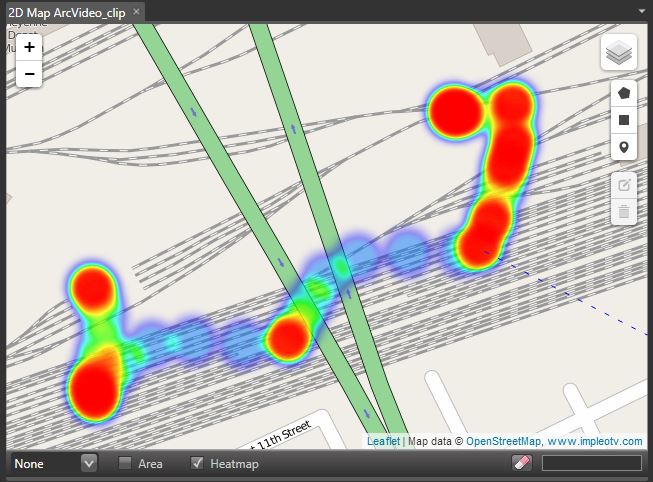

HeatMap overlay

Additionally, it is possible to present (as a heatmap) the area that has been filmed most of the time.

Active platform selection

You can select a specific platform of interest to be in the map center. Once a mouse coursor leaves the map window, the map will be panned automatically to keep an active platform in the center. It is possible to unselect the platform to allow an arbitrary map positioning.

Offline map usage

UAVideo Player's map control automatically loads its map tiles from the Internet, if possible. If no connection exists, you can still use a map from your local directories or intranet server. This map will be added as an overlay over base map.
