UAVideo Player  Version 2.1.23
Importing channels from Optibase EZTV / FITIS server

Optibase EZ TV IPTV System enables administrators to dynamically create and manage video assets and distribute them across a network. Optibase FITIS is an integrated full motion video (FMV) solution for capturing, processing, archiving, indexing, managing and disseminating tactical ISR video and metadata. UAVideo Player can created Missions by importing the UDP channels information from EZ TV or FITIS servers.

First, the server type and IP must be configured.

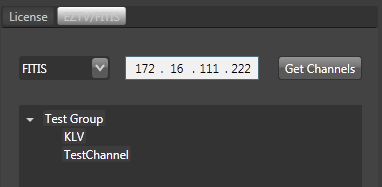

Figure 1. EZ TV / FITIS Server configuration.


After the server is configured, you can browse the list of existing channels by selecting EZTV / FITIS radio button.

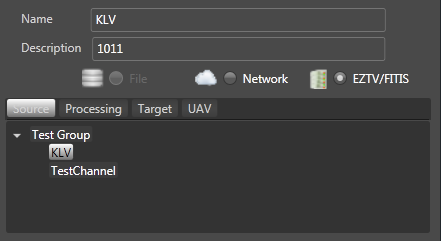

Figure 2. Mission creation with EZ TV / FITIS channel info.


Once you select the channel, the information is copied into UAVideoPlayer mission.

You can also import missions (create missions from existing channels) with Import Missions tool, as shown below.

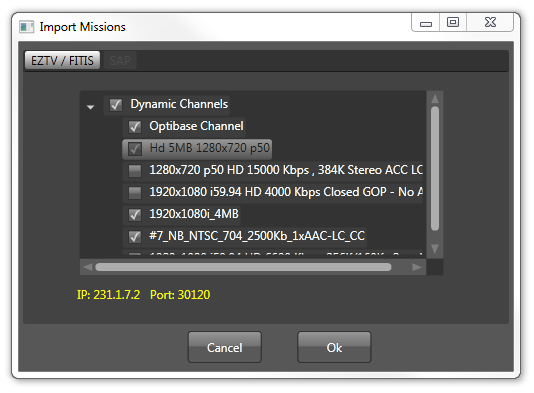

Figure 3. Mission import from EZ TV / FITIS channels.


Individual channels as well as groups may be selected by marking corresponding checkbox. Selecting checkbox of the Group node, will check/uncheck all channels in the group.

Note
Only UDP channels can be imported.
You need to select the network interface for the incoming streams (if you have more than one).
