Recording to file

To record the STANAG (TS) stream:

• Select the KLV PID or leave it AutoDetect

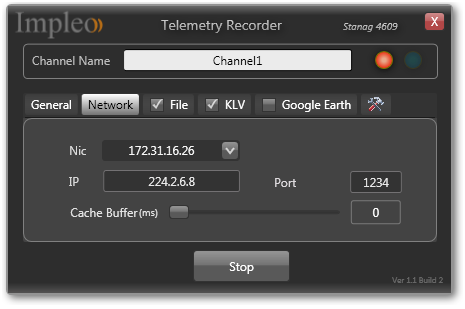

• In the Network Tab, select UDP stream's IP and port and appropriate network interface adapter

• Make sure a checkbox on the File tab is on.

• Select a target directory for the file recording.
• Select desired fragmentation (if 0, no fragmentation will be done and the stream will be recorded into one file).
• Select desired descriptive metadata format, if needed. Recorder will save MPEG stream information for every segment recorded.
• Press Start button.

  If a stream with the corresponding parameters is available, the Recording is started (segment name and recorded size information should be updated).
